Hinges

We had a big box of hinges waiting to go on this page, and here they are.
I've added more measurements (in mm) for flap and pin hinges and grouped the hinges by type.
If in doubt please measure precisely what you need.
If you need a nut or Bolt fixing, they are in very short supply so you will probably have to get the entire hinge. We do have wood screws to fit most of these hinges though.
Sorry, no single hinges unless listed
Page updated in the warm while the rain blatters down outside 11th March 2018

Flap Hinges

cahi004-66treadle
CAHI004 15k treadle 1 flat, 1 round end, w screws Singer 15 treadle Good 39 x 45; £5.00
cahi011b
CAHI011b Singer oval flap odd hole spacing Singer treadle 31x84 Good/ok; £5.00
cahi011singerflap
CAHI011 Singer oval flap Singer treadles etc Good 31x84; £5.00

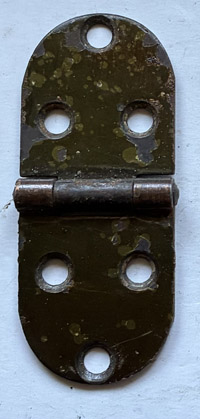

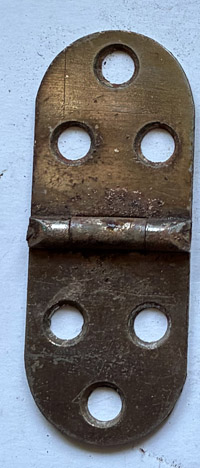

CAHI011c Oval flap hinges 31.6x80.8 Usable; £4.00

CAHI011d Oval flap hinges 31.6x76.5 Usable; £4.00
cahi034hinge
CAHI034 Flat with screws flap Jones CS Good; £2.50
cahi014
CAHI014 "Flap complex with screws" Singer Good; £5.00
cahi014a

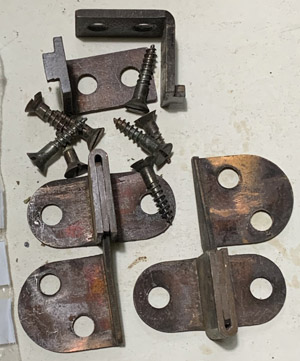

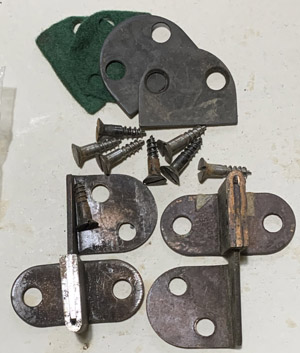

CAHI014a With stops as 014 Singer Good; £7.00
cahi077
CAHI077 Flap hinges rect 30.5 x 68.5; £2.00 ea
cahi017
CAHI017 Flat 64 x 31 UI Fair; £2.00
cahi032-201drawer
CAHI032 Drawer flat with catch Singer 201 table Fair; £3.00
cahi033hinge
CAHI033 Jones CS Treadle flap hinge 31x83 Good; £2.50
cahi075
CAHI075 Singer cabinet oil guard hinges & chain G; £5.00
cahi001
CAHI001 2 hinges, catch + screws for inner box in Singer domed lid Fair; £2.50

Internal hinges - front doors, light covers and lids

cahi079
CAHI079 F&R Cub7 and 404 front hinge F & R Cub 7; £4.00
cahi080
CAHI080 F & R Star 110 front door F & R Star 110; £4.00
cahi081
CAHI081 Bernina 840 top hinges; £6.00
cahi082
CAHI082 New Home 535 Hinge; £4.00
cahi083
CAHI083 Crown Point 700R light hinge Crown Point; £4.00
cahi084
CAHI084 New Home SD2014 hinge set; £5.00
cahi085
CAHI085 F & R 35 Hinge F & R; £4.00
cahi086
CAHI086 Riccar 505 Hinge Riccar; £4.00
cahi087
CAHI087 Toyota hinge Toyota; £3.00
cahi056
CAHI056 Front door w bits for New Home 657a Good; £1.50
cahi035hinge
CAHI035 Flat with screws spring Toyota 2700 EC1 Good; £1.50
cahi078
CAHI078 NHMC8000 end cover hinge & spring New Home VG; £3.00

Piano Hinges

Usually from cabinet doors

cahi006pfaff
CAHI006 Long cabinet hinge with screws Pfaff treadle Good; £5.00

CAHI006a Piano hinge 26 inches Singer cabinet Good; £5.00

Pin Hinges for bases

Usually fit in cases rather than tables, these only tilt back, not down.
cahi013
CAHI013 Pin + nuts 16 dia 13.5 deep, Stud fixing 6x12.5; £3.00
cahi016
CAHI016 Jones CBD pin no nuts Good 16 dia 13.5 deep, Stud fixing 6x18.5; £3.50
cahi020
CAHI020 Pin w big nuts 16.5 dia 13 deep, Stud fixing 8x30 Good; £4.00
cahi022
CAHI022 Pin w nuts 16.5 dia 12.5 deep, Stud fixing 7x40 Usable; £4.00
cahi038hinge
CAHI038 Pin long Bolt fixings short barrel 16.5 dia 12.5 deep, Stud fixing 7x49 Good; £2.00
cahi024frd
CAHI024 Frister and Rossmann D pin plus nut and washer 16 dia 12.2 deep, Stud fixing 6.5x20 Fair; £1.50
cahi030hinge
CAHI030 Flat pin hinge plastic base Toyota 800/Merritt Good; £3.00
cahi045hinges
CAHI045 Pin with nuts FR E Fair 16 dia 12 deep, Stud fixing 6.5x16; £3.50
cahi040hinges
CAHI040 Pin w Bolt fixings Jones CS/Empress Good 16.6 dia 12 deep, Stud fixing 8x35; £4.00
cahi044
CAHI044 "Long pin" Good 16.5 dia 12.5 deep, Stud fixing 7x51; £5.00
cahi076
CAHI076 Large pin hinges rectangular studded Wheeler & Wilson D9; £6.00
cahi046hinge
CAHI046 Pin w Bolt fixings Hexagon/Singer Good 15.2 dia 17 deep, Bolt fixing 6.5x29; £4.00
cahi050
CAHI050 Pin w Bolt fixings Good 15.9 dia 17.5 deep, Bolt fixing 6x122; £4.00
cahi051
CAHI051 Pin w Bolt fixings Good 15.8 dia 12.2 deep, Bolt fixing 6x15.5; £4.00
cahi052
CAHI052 Pin w nuts Good 15.9 dia 13.6 deep, Stud fixing 6.3x19.5; £4.00
cahi053
CAHI053 Pin with nuts large stud V good 16 dia 12.5 deep, Stud fixing 8x24; £5.00
cahi057
CAHI057 Pin w nuts Singer 127 Fair 16.5dia 12.5 deep, Stud fixing 6.5x39; £3.50
cahi060
CAHI060 Pin hinge with nut UI 16.5 dia 13 deep, Stud fixing 8x30
cahi061
CAHI061 pin no nuts VGC 16 dia 12.2 deep, Stud fixing 8x23; £3.00
cahi062
CAHI062 Pin with nuts large stud Good 16.5 dia 12 deep Stud fixing 8x28; £4.00
cahi064
CAHI064 Pin with stud Harris VGC 15 dia 11 deep, Stud 8x22; £6.00
cahi065
CAHI065 Pin with stud FRTS Good 16 dia 12.5 deep, Stud fixing 7x20; £5.00
cahi066
CAHI066 Pin with stud 1 nut Davis Good 15.8 dia 13 deep, Stud fixing 8x15; £5.00
cahi067
CAHI067 Pin with stud OK 15.9 dia 12 deep Stud fixing 6.5x17.5; £4.00
cahi068
CAHI068 Pin with stud OK 16.5 12.5 Stud 7x17; £4.00
cahi069
CAHI069 Pin with Bolt fixing OK 16.5 dia 17.8 deep, Bolt fixing 6.5x29; £4.00
cahi070
CAHI070 Pin with stud OK 17 12.5 Stud 8x34; £4.00
cahi071
CAHI071 Pin with stud screw in for blond base Very Good 16 dia 12.3 deep Stud fixing 7.5x23; £4.00
cahi071a
CAHI071A Pin with stud screw in for blond base Good 16 dia 13.5 deep, Stud fixing 6x13; £4.00
cahi072
CAHI072 Pin with stud no nuts Jones 568 Good 15.5 dia 13.5 deep, Stud fixing 6.5x18.5; £3.00
cahi073
CAHI073 Pin with stud 15.9 dia 13.5 deep, Stud fixing 18.5 Good; £4.00

Pin Table Hinge

Hinges used in tables and treadle bases. These hinges usually hinge up to access the underside of the machine, and down to put it away.

All hinges are 29mm diameter unless otherwise stated.
cahi002
CAHI002 Round flat 1 hole plain pointed pins 36mm back to shoulder; £2.50
cahi002a
CAHI002a Round flat 1 hole plain pins 29mm Singer etc Good 36mm back to shoulder; £5.00
cahi002c
CAHI002c Round flat 1 hole shaped pins Singer etc New 40mm back to shoulder; £5.00
cahi002b
CAHI002b Round flat 1 hole shaped pins Singer etc 36mm back to shoulder; £5.00
cahi003
CAHI003 Round flat 2 hole plain pins Singer etc 33mm back to shoulder; £5.00
cahi003a
CAHI003a Round flat 2 hole plain pointed pins 33mm back to shoulder; £5.00
cahi029hinge
CAHI029 "Treadle flat round with screws 1-1/2 inch" Jones CS Good; £5.00
cahi074
CAHI074 Round flat 2 hole ind 37.5mm dia 41mm back to shoulder; £5.00
cahi009mundlos
CAHI009 Semicircle w pin Mundlos Good; £5.00
cahi012wgind
CAHI012 Round ind with screws 1-3/8 Wilcox & Gibbs industrial Fair; £4.00
cahi039hinges
CAHI039 Pin with screws VG; £3.00
cahi031vickers
CAHI031 Pin Vickers Good; £5.00
cahi008pfaff
CAHI008 Oval flap with screws Pfaff treadle OK; £6.00
cahi088
CAHI088 Governor C flat 2 hole hinges 32mm dia Governor 29mm back to shoulder; £6.00
cahi089
CAHI089 Narrow pin hinge 1 hole 16mm wide 28mm back to shoulder; £5.00

Odd Hinges

cahi036hinge
CAHI036 Notch hinges - these come frome the underneath of Singer 12s and some other machines - they are for positioning machines in portable cases on top of a treadle, bases usually had 3 or 4 of them; £1.00 each
(Note, thanks to Nick C for the upgrade on this information)
cahi043hinges
CAHI043 "Swivel pin with nuts" Superb Usable; £5.00
cahi023
CAHI023 Complex with screws Singer 285k Good; £5.00
